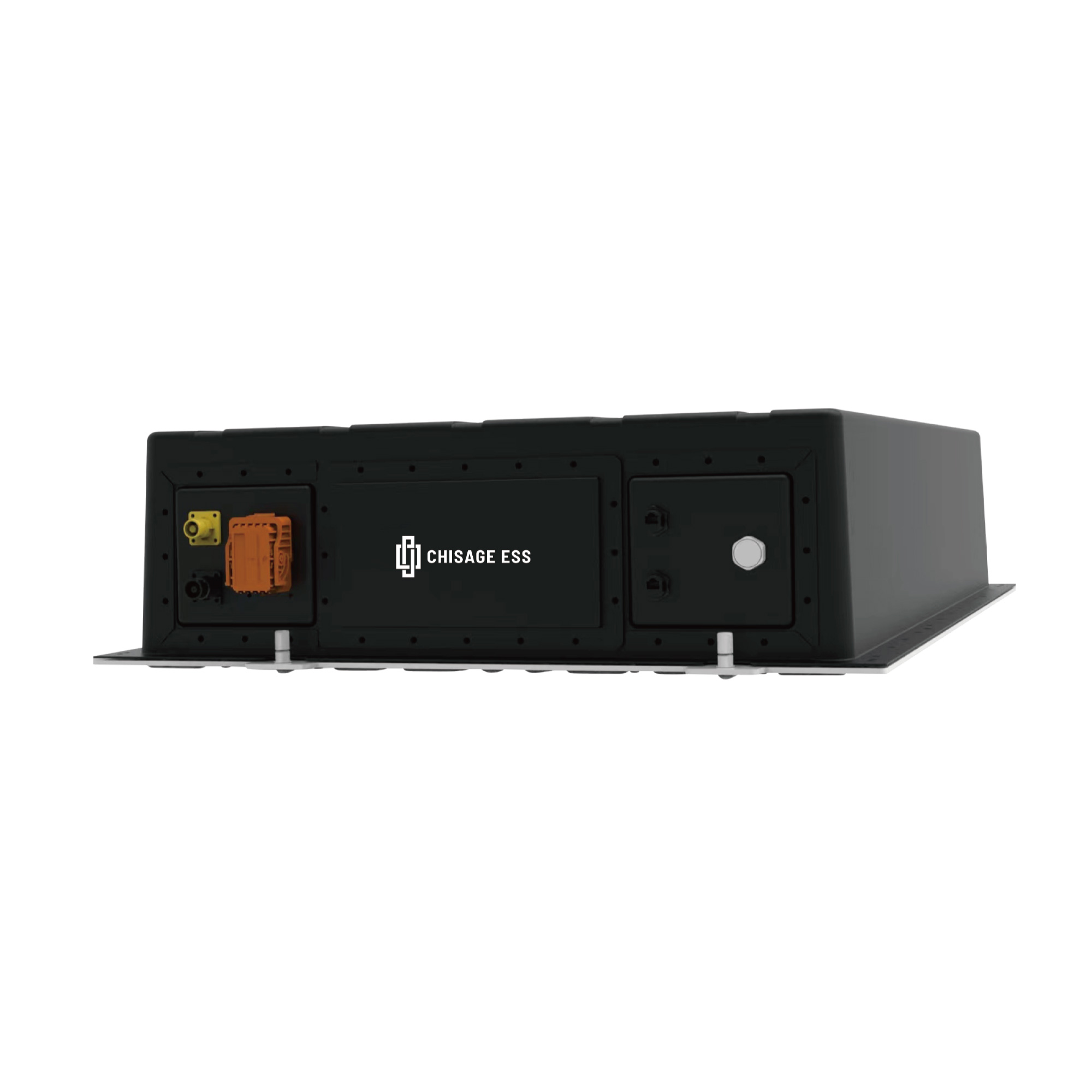

CHISAGE ESS CE166280-L-H ESS Container Product Pictures 01

ESS Container

CE166280-L-H

  • 46592Wh Nominal Capacity
  • IP65 dual firefighting and anti-explosion design
  • Low-temperature difference to 3℃, extend battery lifetime
  • 30% higher energy density than air cooling system, decrease installation area
  • Realtime battery state monitoring, dynamic adjustment of energy management strategy
  • Smart liquid cooling temperature control system, decrease 20% auxiliary power supply, saveoperation cost
Get Free Quotes Now
Download Datasheet

Why choose us?

We have rich service experience and research and development technology.

Stable supply chain

Having our own battery pack and inverter factories with more than 3GWh of Li-FePO4 battery packs and 100000 inverters capacity.

Local Services

Branch offices, technical centers and warehouses in main markets to cover the surrounding area of 200-300 kilometers.

Accept Customization

Supporting OEM and ODM for strategic customers, customers with the same idea, and customers who reach the MOQ.

Excellent After-sales Service

The service & technical team of more than 90 people provides timely assistance, product training and on-site technical support.

Strong R&D Team

The R&D team of more than 30 professionals, who have more than 10 years of R&D experience at top companies in the industry.

Competitive Payment Terms

Supporting a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and so on.

Technical Data

Model CE166280-L-H
Cell Capacity (Ah) 280
Norminal Voltage (V) 166.4
Nominal Energy (Wh) 46,592
Usable Energy (Wh) 41,933
Operation Voltage Range (V) 135.2~187.2
Standard Charge Current (A) 140
Standard Discharge Current (A) 140
Max. Charge Current (A) 140
Max. Discharge Current (A) 140
Temperature Range Charge Temperature: 0~55°C
Discharge Temperature: -20~55°C
Operation Humidity 20~95%RH (No condensing)
Protection Degree IP65
Dimension (mm) 808W ×1,172D ×242H
Net Weight (kg) 350
Certification CE, UN38.3
Battery Rack
Connection Series 1P52S ×8
Norminal Voltage (V) 1,331
Nominal Energy (kWh) 372.7
Usable Energy (kWh) 335.5
Operation Voltage Range (V) 1,081.6~1,497.6@(0~55°C)
Standard Charge Current (A) 140
Standard Discharge Current (A) 140
Max. Charge Current (A) 140
Max. Discharge Current (A) 140
Dimension (mm) 925W ×1,180D ×2,390H
Approximate Weight (kg) 3,000
Life Cycles 6,000 cycles@80% DoD

Our gallery

Product Details

CHISAGE ESS CE166280-L-H ESS Container Scene Diagram 03(1)
CHISAGE ESS CE166280-L-H ESS Container Scene Diagram 02(1)

Different powers meet the vast majority of scenarios. We provide on-site installation and usage guidance services, making it easy for you to buy and use.

CHISAGE ESS CE166280-L-H ESS Container Scene Diagram 01(1)

Product Introduction

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.
CHISAGE ESS CE166280-L-H ESS Container Feature Image 02(1)

Higher Energy Density, Decrease Installation Area

CHISAGE ESS container features 30% higher energy density than traditional air-cooled systems, it reduces the space required for installation and improves energy storage efficiency.

Low-temperature Difference, Extend Battery Lifetime

CHISAGE ESS container reduces the temperature difference to 3°C effectively extends the life of the battery. This design reduces the impact of temperature variations on the battery, which is conducive to improving the life and stability of the battery.

CHISAGE ESS CE166280-L-H ESS Container Feature Image 01(1)

Unleash the potential for unlimited possibilities!

Click to learn more about us and move towards a new era of energy together!

Play Video about CHISAGE ESS Company Introduction Video

Application Cases​

We have served thousands of customers and have rich service experience.
2MWh ESS Container Installation Case in China

China Installation Case

2MWh ESS Container Installation Case in China

China Installation Case

1.3MWh ESS Container Installation Case in China

1.3MWh ESS Container Installation Case in China

What Our Customers Have to Say

Real feedback from users can better reflect the professionalism of our products.
We have been looking for a reliable solution for home energy storage and CHISAGE ESS products meet our requirements. Their home energy storage systems have surprised us a lot in terms of performance and we are satisfied with CHISAGE ESS products.
Eren HillPurchasing
Eren Hill
It has always been a pleasure for me to be a CHISAGE ESS distributor. The excellent quality of their products and some of their market-leading features have made my sales efforts much smoother, and customers have responded positively to CHISAGE ESS's energy storage solutions.
Cody JoynerGeneral Manager
Cody Joyner
Our energy needs are increasing and CHISAGE ESS's energy storage solutions provide us with the ideal solution. What I admire is their professional technical support team, who always solves our problems in a timely manner.
Emanuel SadlerOperations Director
Emanuel Sadler
Previous
Next

FAQ

Most frequent questions and answers

Yes, CHISAGE ESS inverter is compatible with a wide range of batteries available on the market. We have conducted extensive testing to ensure its compatibility and performance. We have a list of all the suitable batteries, please refer to our documentation.

CHISAGE ESS is a factory 50 kilometers away from Ningbo port, which is very convenient for loading and shipping, and saves a lot of transportation cost. We have a R&D and engineering team of more than 30 people for energy storage systems and solar inverter technology. Now we have over 3GWh of Li-FePO4 battery packs and 100000 inverters capacity.

CHISAGE ESS supports a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.

CHISAGE ESS welcomes you to test our quality by sample. Samples will be prepared and sent out within 7 working days after the specification is confirmed.
