Hybrid Inverter
- -Unlimited quantity inverters parallel for on-grid and off-grid operation
- -Support triple-phase mode and full-power single-phase mode
- -100% unbalanced output, each phase max. output up to 50% rated power
- -Support ON/OFF GRID mode switch, EPS output
- -Colorful 7-inch touch LCD, IP65 protection degree
- -Support battery charging/discharging according to the time setting
- -Dual AC input port for grid and diesel generator
- -Support storing energy from diesel generator
- -Support different power inverters’parallel connection
- -ARC fault detection optional

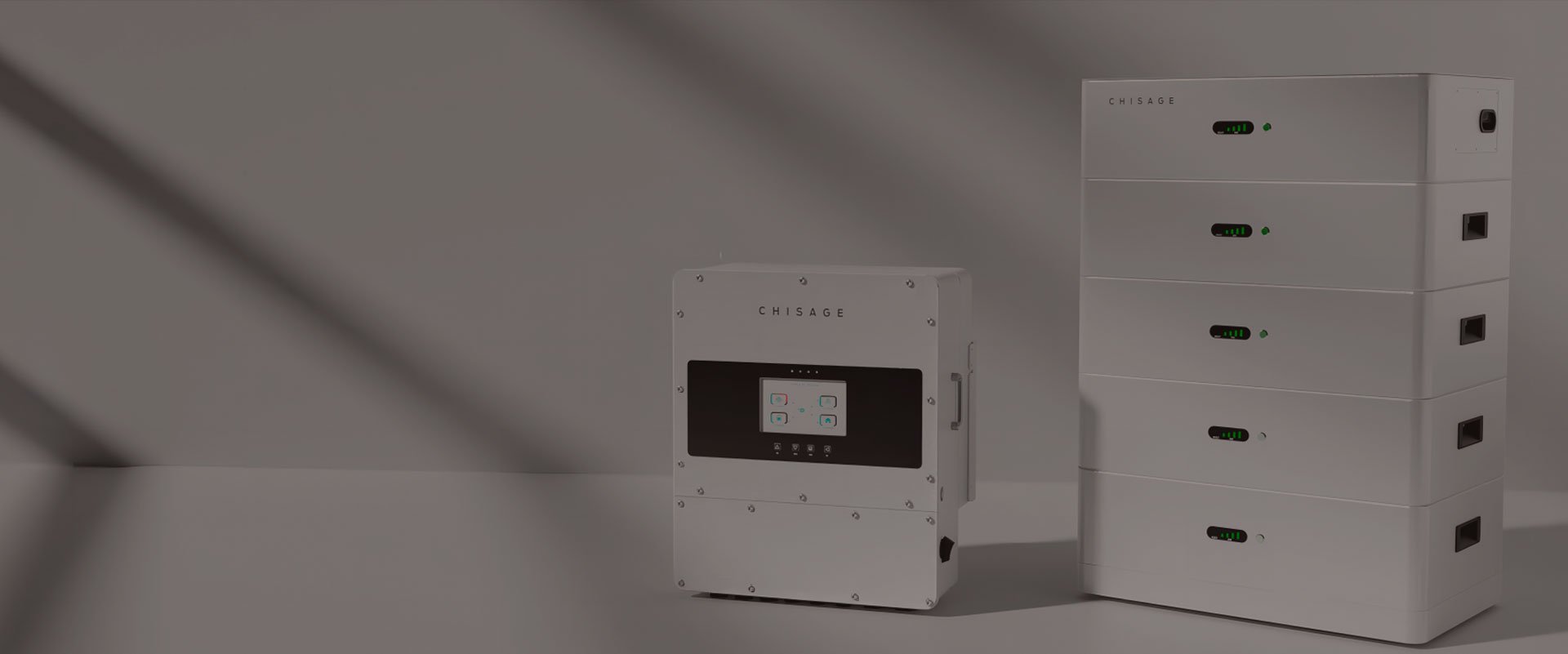

IP65 triple/single phase hybrid inverter with colorful 7-inch touch LCD support unlimited quantity inverters parallel for on-grid and off-grid operation. The ON/OFF GRID mode switching function and the function to charge/discharge the battery according to the time setting can make the operation more convenient. It supports triple-phase mode and full-power single-phase mode, and also supports storing energy from diesel generator.
Chisage ESS hybrid inverter support 100% unbalanced output, enabling efficient power distribution across all phases. Each phase can deliver a maximum output of up to 50% of its rated power, providing flexibility and optimal performance.
Chisage ESS hybrid inverter have an independent AC input port specifically designed for connection to a diesel generator. This allows seamless integration of backup power from the generator when needed.
Chisage ESS hybrid inverters are designed to support fast switching between on-grid and off-grid mode in less than 10 milliseconds, ensuring a seamless transition between on-grid and off-grid operation.
Chisage ESS hybrid inverter supports battery charging and discharging based on time settings. You can conveniently schedule the charging and discharging of your batteries according to your energy needs and preferences.
| Model | Mars-5G1-LE | Mars-6G1-LE | Mars-8G1-LE | Mars-10G1-LE | Mars-12G1-LE | Mars-14GI-LE |
| Battery Input | ||||||
| Battery Type | Lead-acid or Lithium-ion | |||||
| Battery Voltage Range (V) | 40~60 | |||||
| Max. Charge Current (A) | 120 | 130 | 200 | 220 | 250 | 280 |
| Max. Discharge Current (A) | 120 | 130 | 200 | 220 | 250 | 280 |
| Charging Curve | 3 Stages / Equalization | |||||
| External Temperature Sensor | Yes | |||||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
| PV String Input | ||||||
| Max. DC Input Power (W) | 7500 | 9000 | 12000 | 15000 | 18000 | 20000 |
| PV Input Voltage (V) | 650 (160~800) | |||||
| MPPT Range (V) | 200~700 | |||||
| Full Load DC Voltage Range (V) | 260~650 | |||||
| Start-up Voltage (V) | 160 | |||||
| PV Input Current (A) | 17+17 | 17+17 | 17+17 | 26+17 | 26+17 | 26+17 |
| Max. PV Isc (A) | 20+20 | 34+20 | ||||
| No. of MPPT Trackers | 2 | |||||
| No. of String per MPPT Trackers | 1+1 | 2+1 | ||||
| AC Output | ||||||
| Rated AC Output and UPS Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 14000 |
| Max. AC Output Power (W) | 6000 | 7200 | 9600 | 12000 | 13200 | 15400 |
| Peak Power (off grid) | 2 times of rated power, 10 S | 1.8 times of rated power, 10 S | ||||
| AC Output Rated Current (A) | 7.58/7.25 | 9.09/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 | 21.1/20.3 |
| Max. AC Current (A) | 11.4/10.9 | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 | 27.6/26.4 |
| Max. Continuous AC Passthrough (A) | 30 | 30 | 30 | 50 | 50 | 50 |
| Power Factor | 0.8 leading to 0.8 lagging | |||||
| Output Frequency and Voltage (V) | 50/60Hz, 380/400Vac(Triple phase) | |||||
| Grid Type | Triple phase | |||||
| Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||
| Efficiency | ||||||
| Max. Efficiency | 96.60% | |||||
| Euro Efficiency | 96.00% | |||||
| MPPT Efficiency | 99.00% | |||||
| Protection | ||||||
| Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection |
|||||
| PV Arc Fault Detection | Optional | |||||
| Output Over Voltage Protection | DC Type II / AC Type III | |||||
| Certifications and Standards | ||||||
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699,C10-11 | |||||
| Safety Regulation | IEC/EN62109-1, IEC/EN62109-2 | |||||
| EMC | IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 | |||||
| General Data | ||||||
| Operating Temperature Range (°C) | -40~60, >45 Derating | |||||
| Cooling | Smart Cooling | |||||
| Noise (dB) | <45 | |||||
| Communication with BMS | RS485; CAN | |||||
| Weight (kg) | 38 | 40 | 42 | 44 | 44 | 45 |
| Dimensions (mm) | 510Wx630Hx290D | |||||
| Protection Degree | IP65 | |||||
| Installation Style | Wall-mounted | |||||
| Warranty | 5 years | |||||
